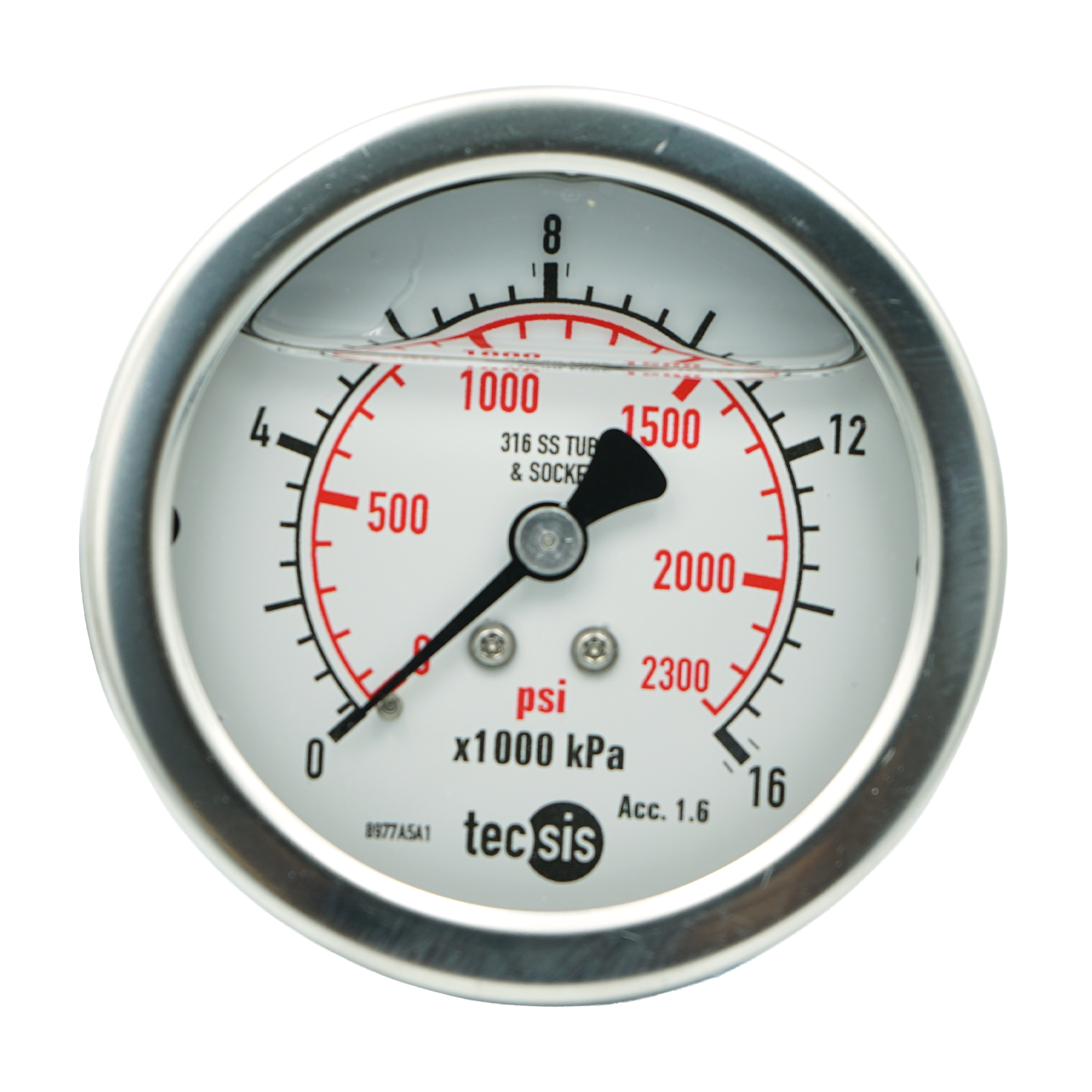

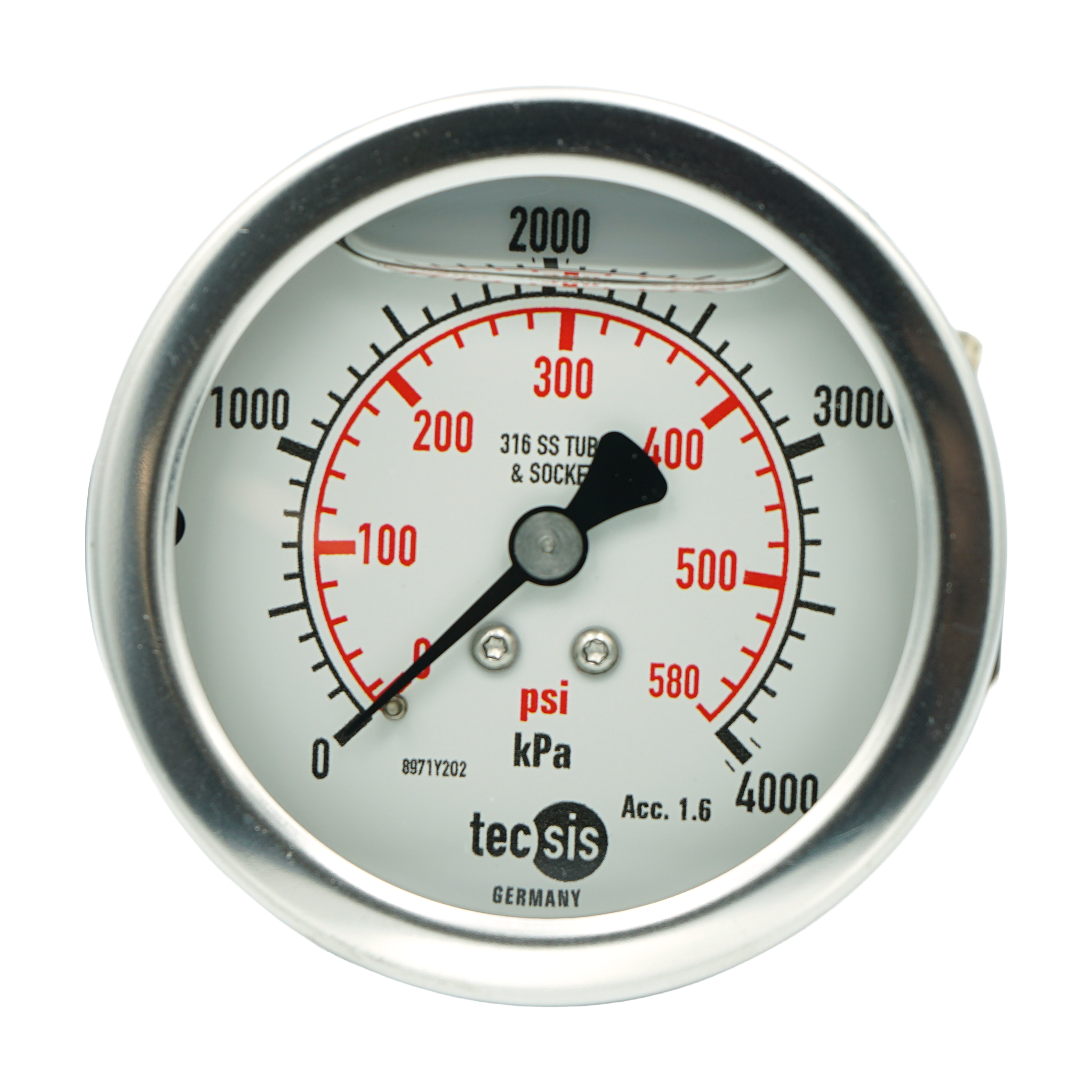

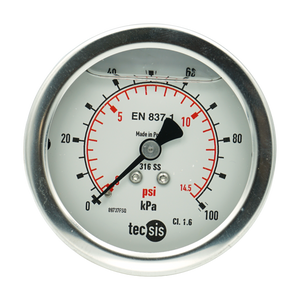

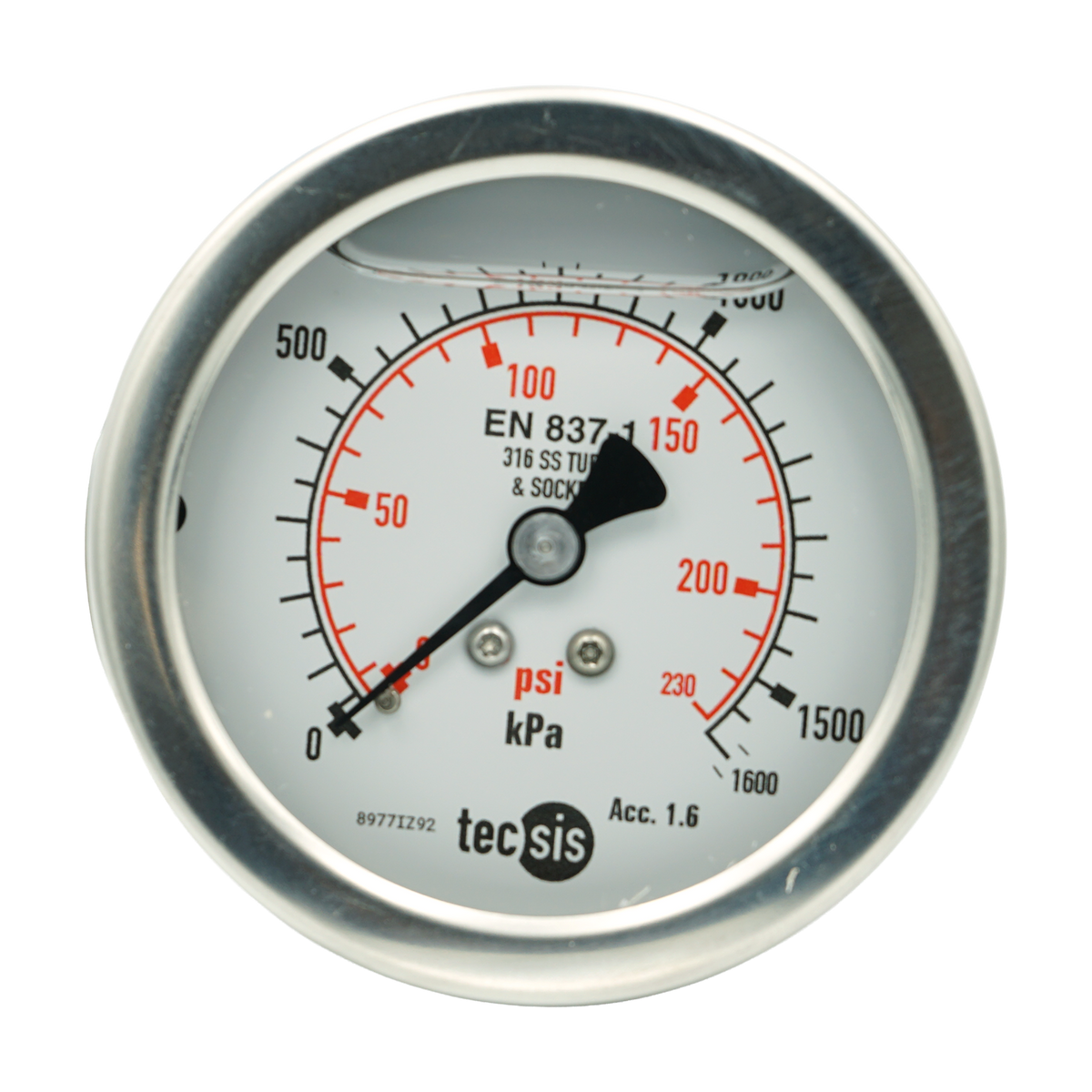

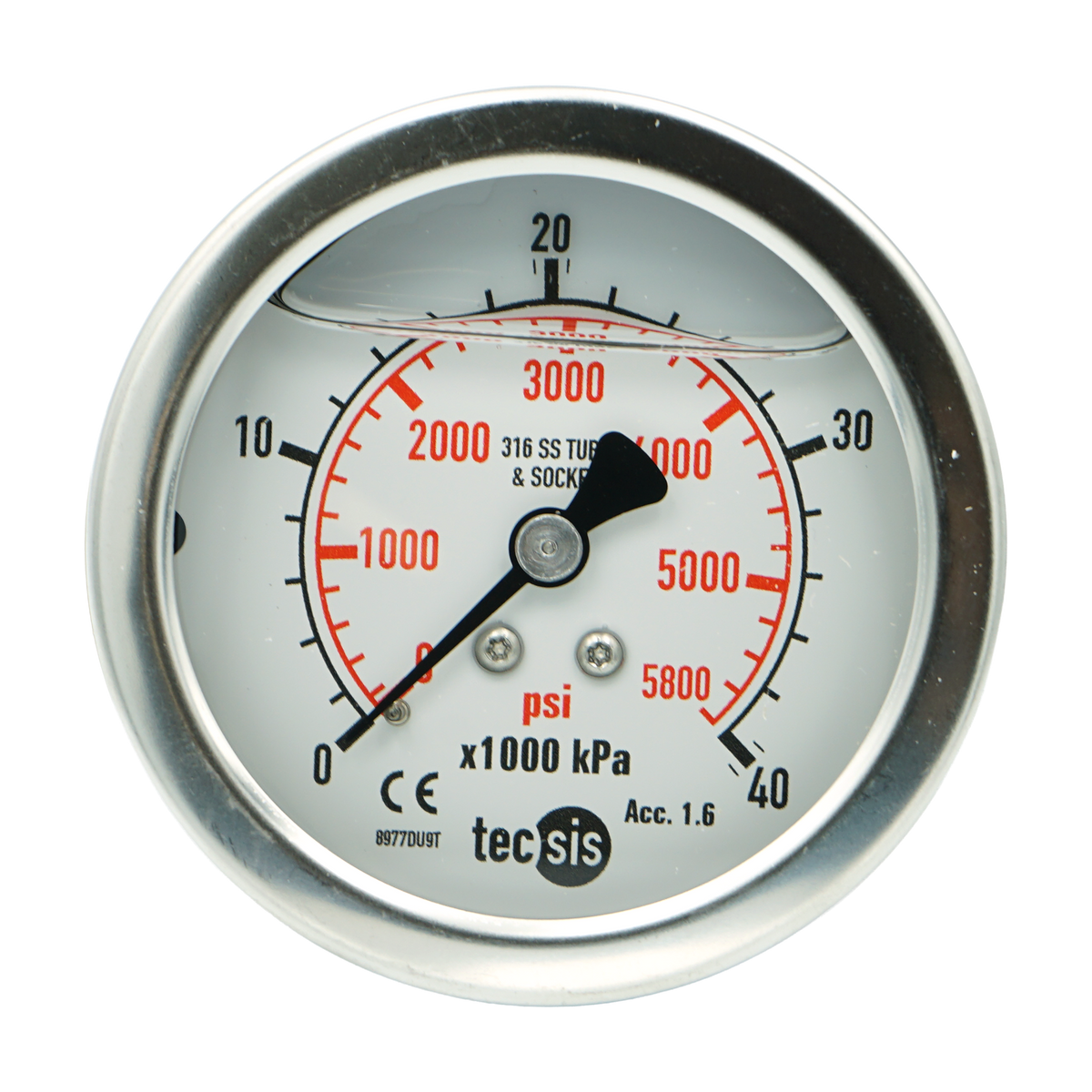

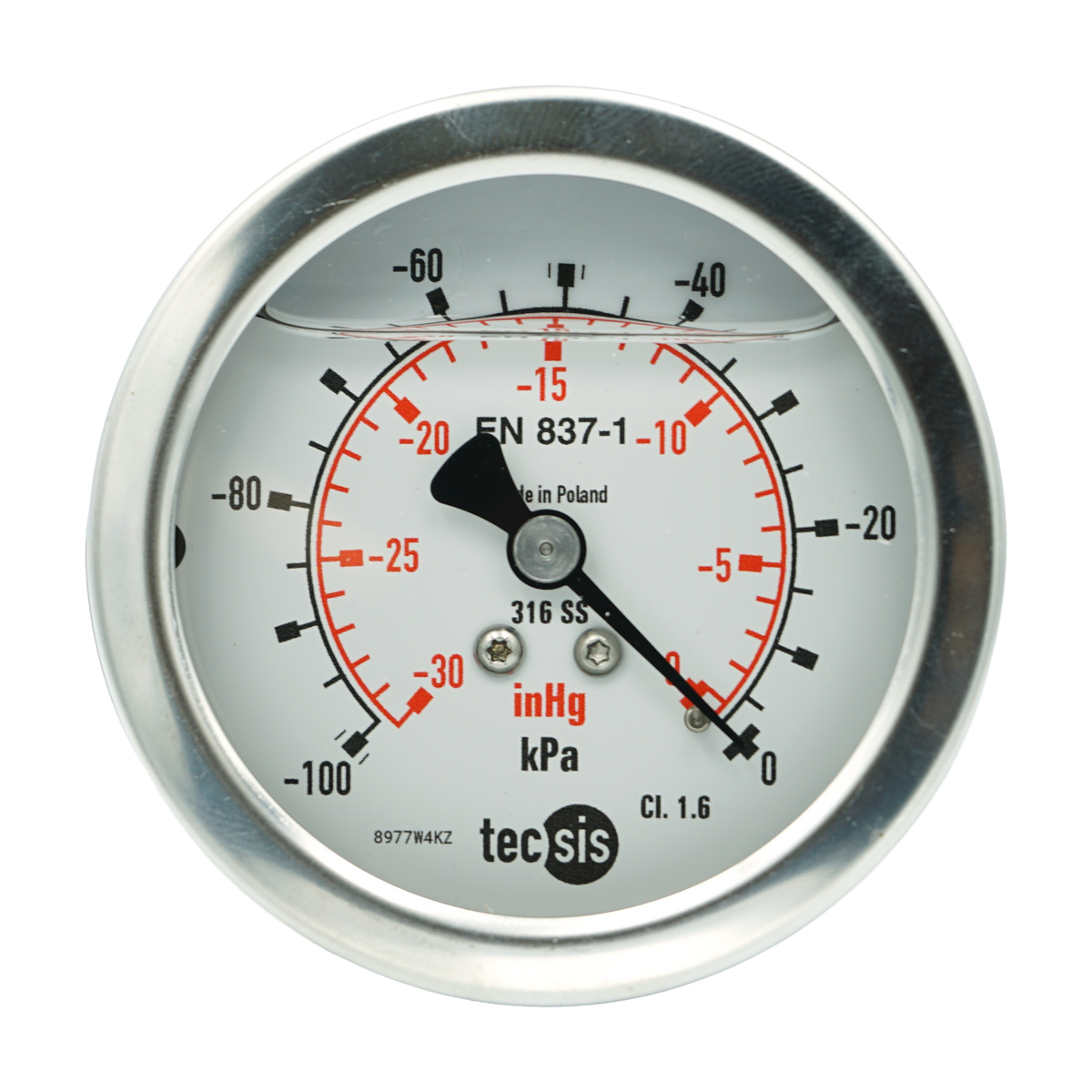

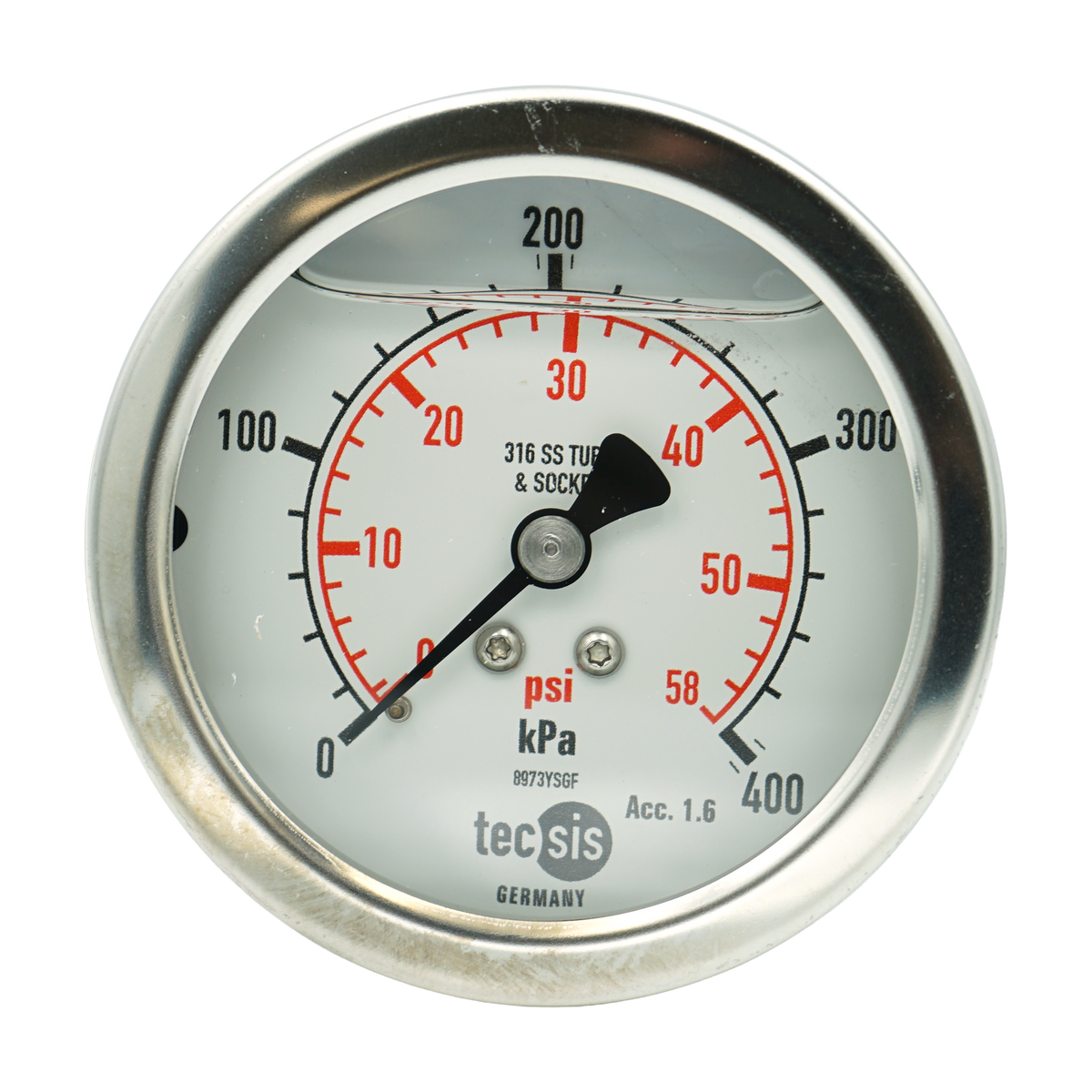

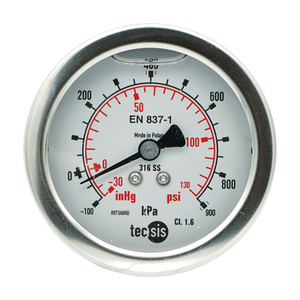

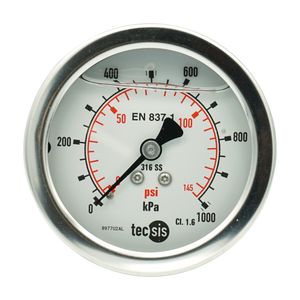

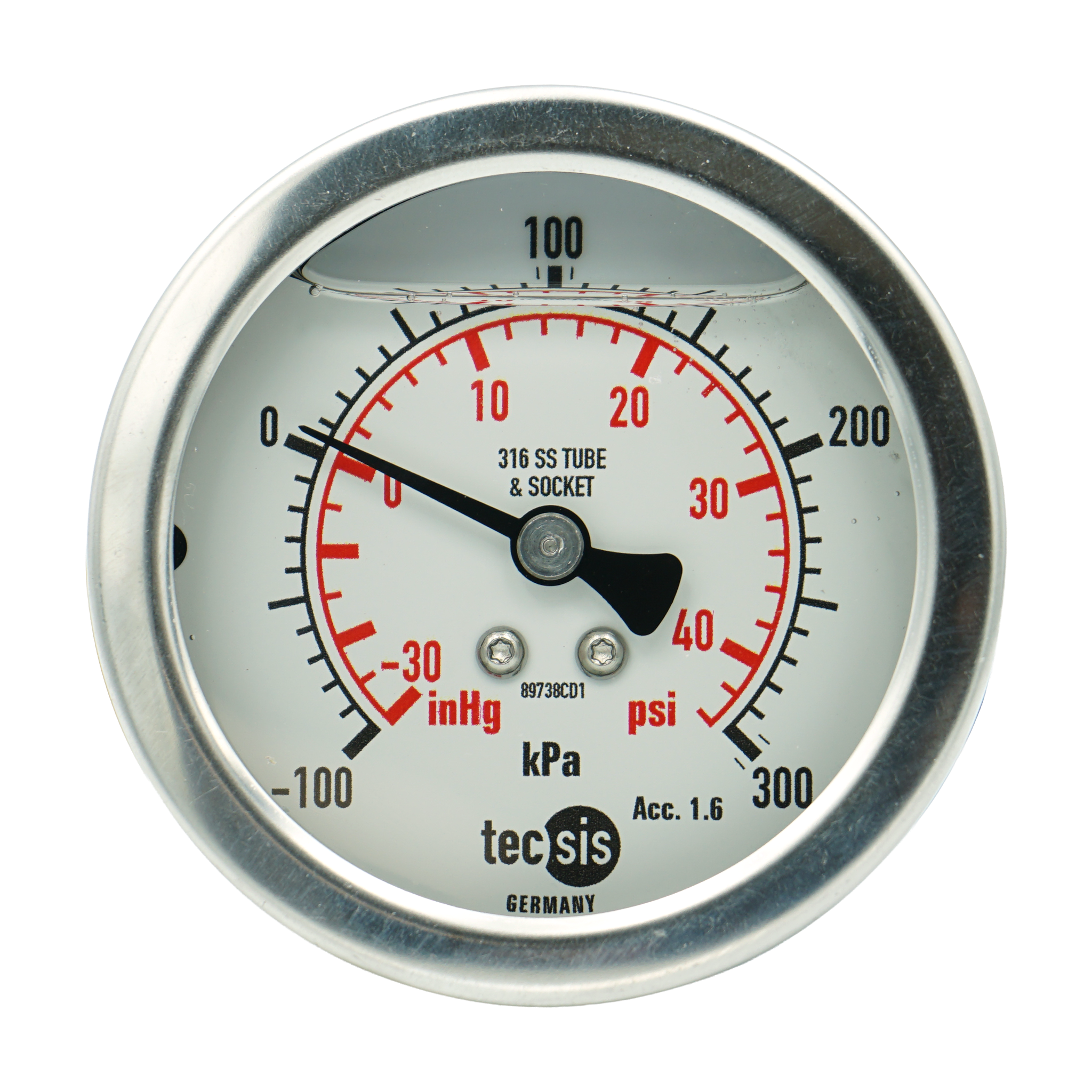

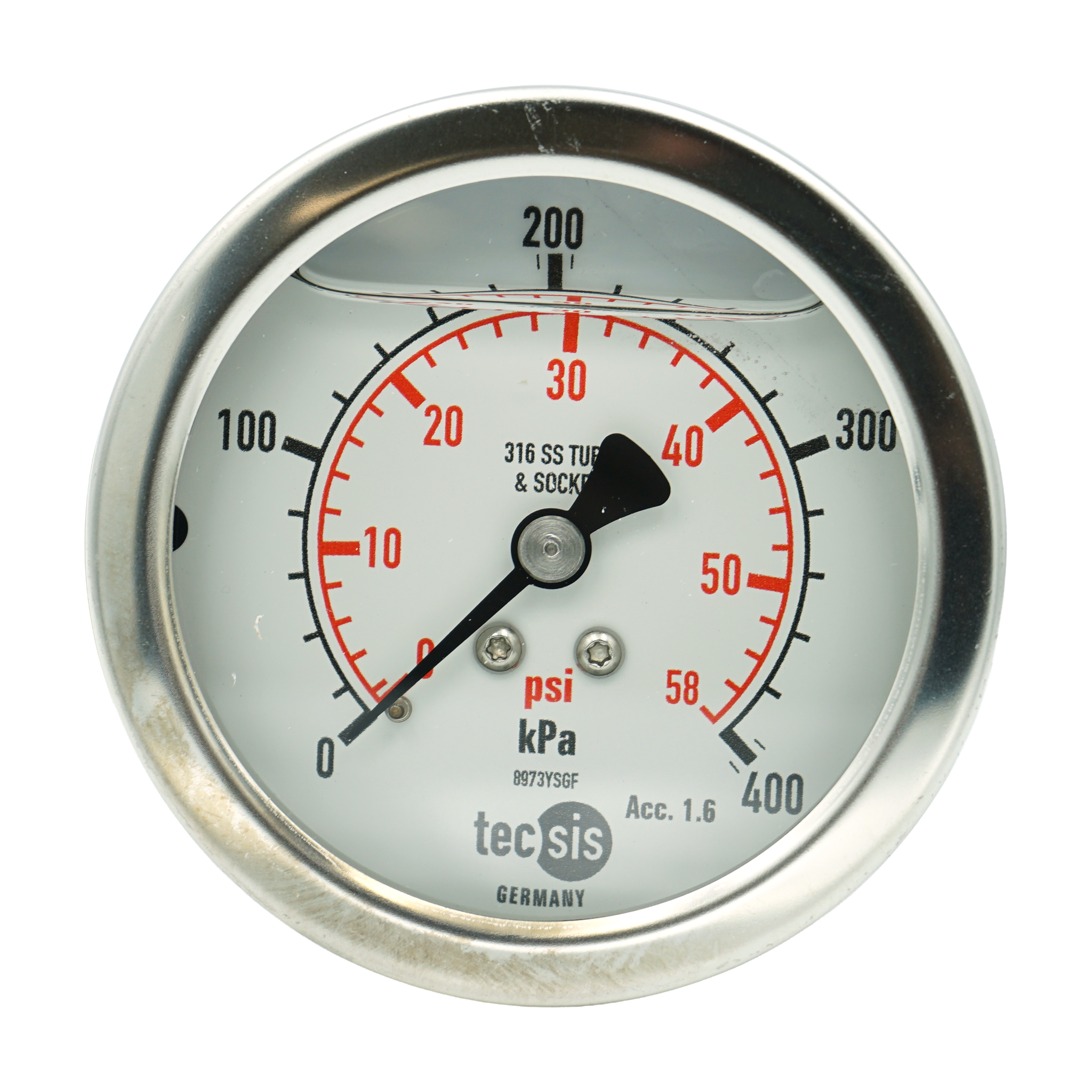

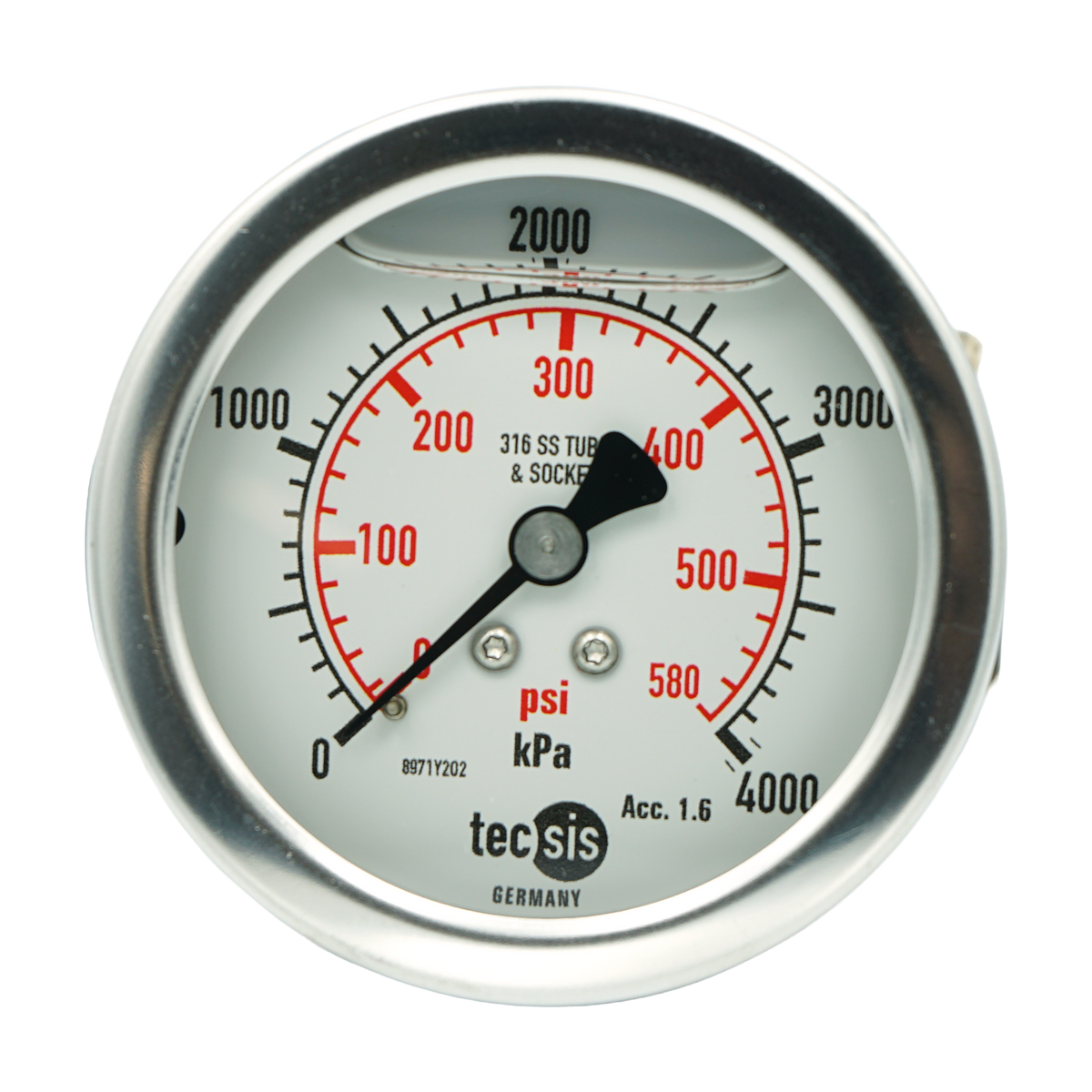

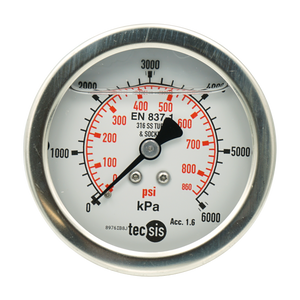

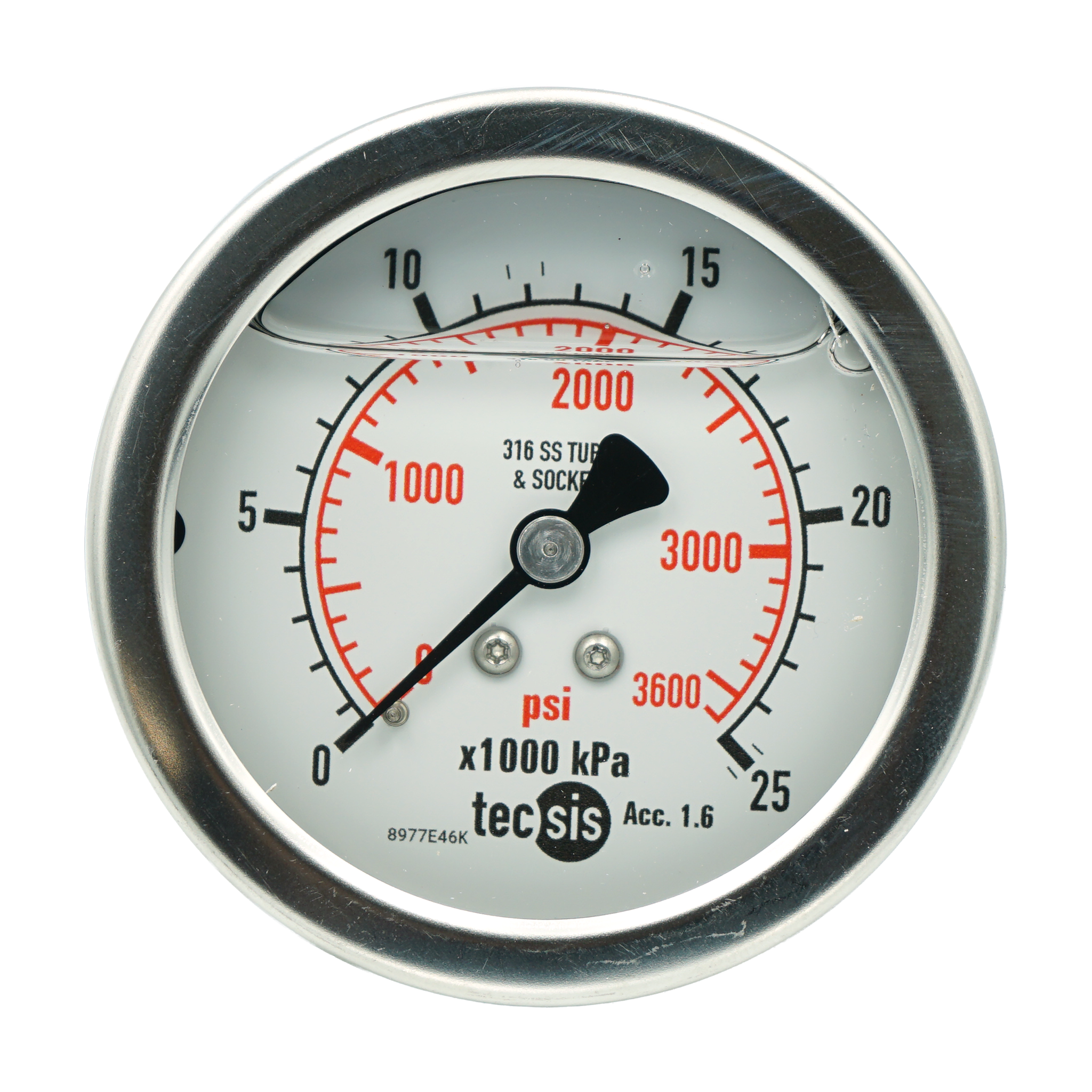

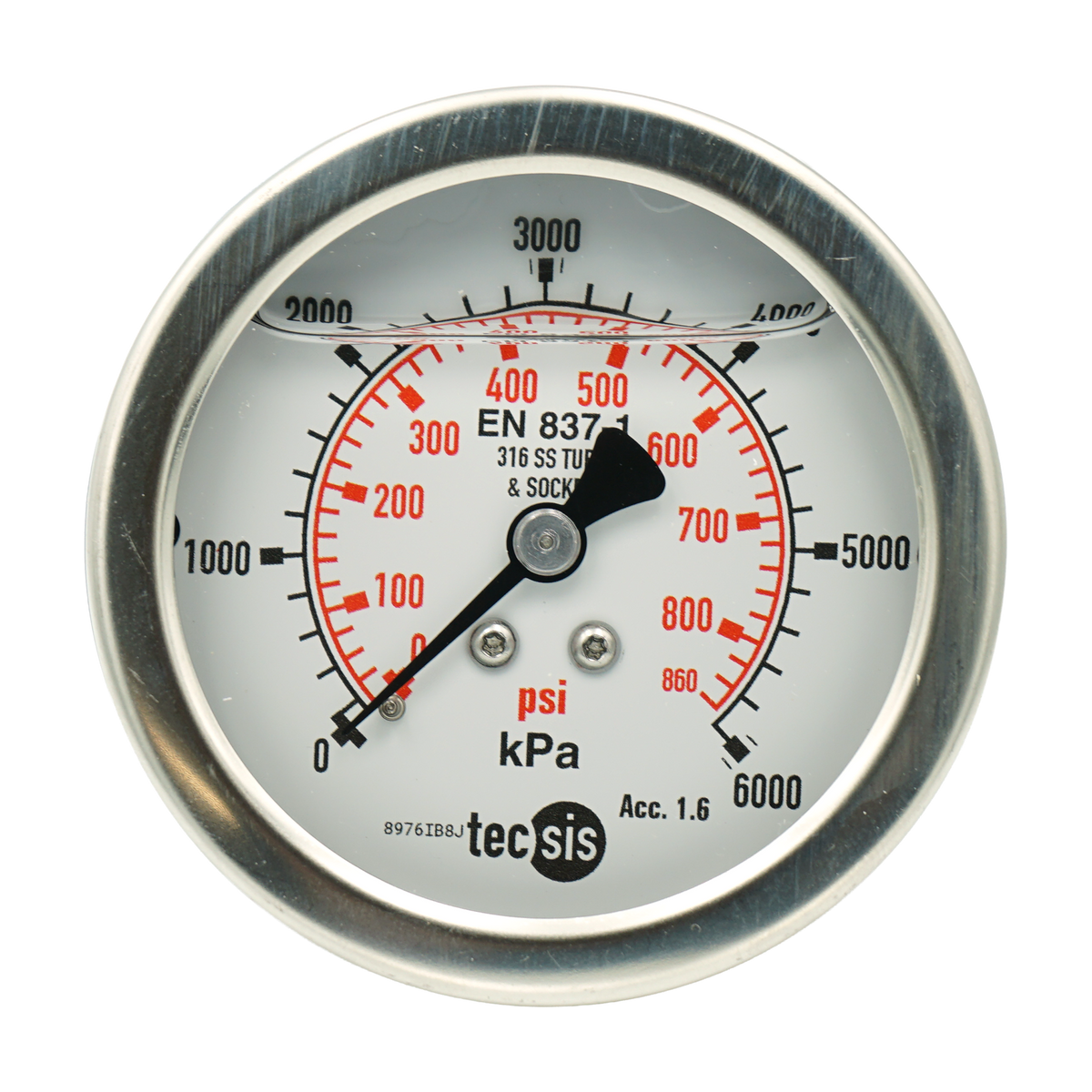

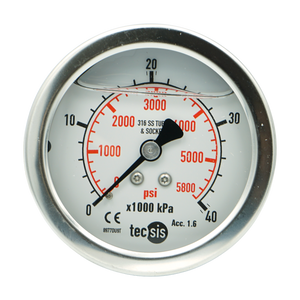

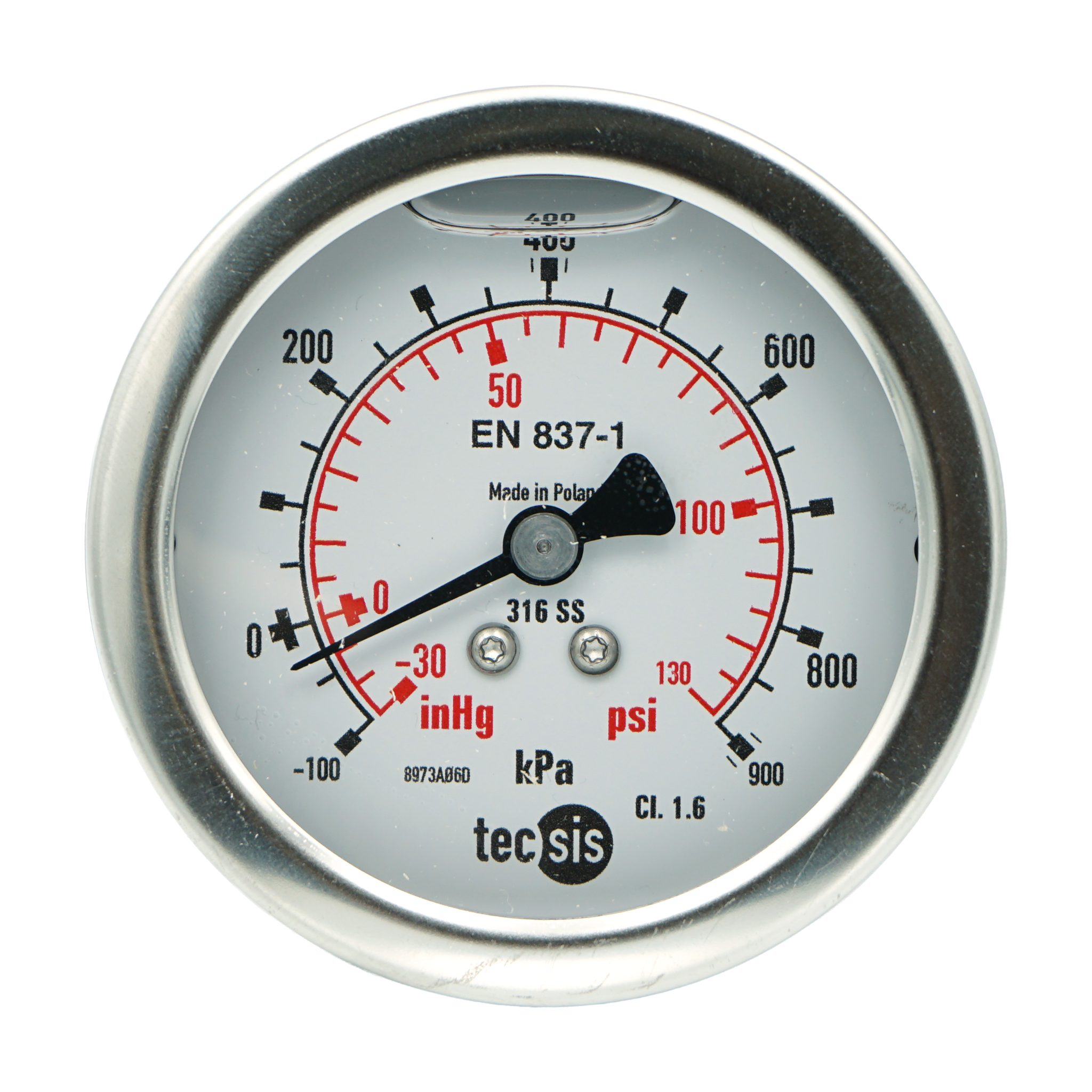

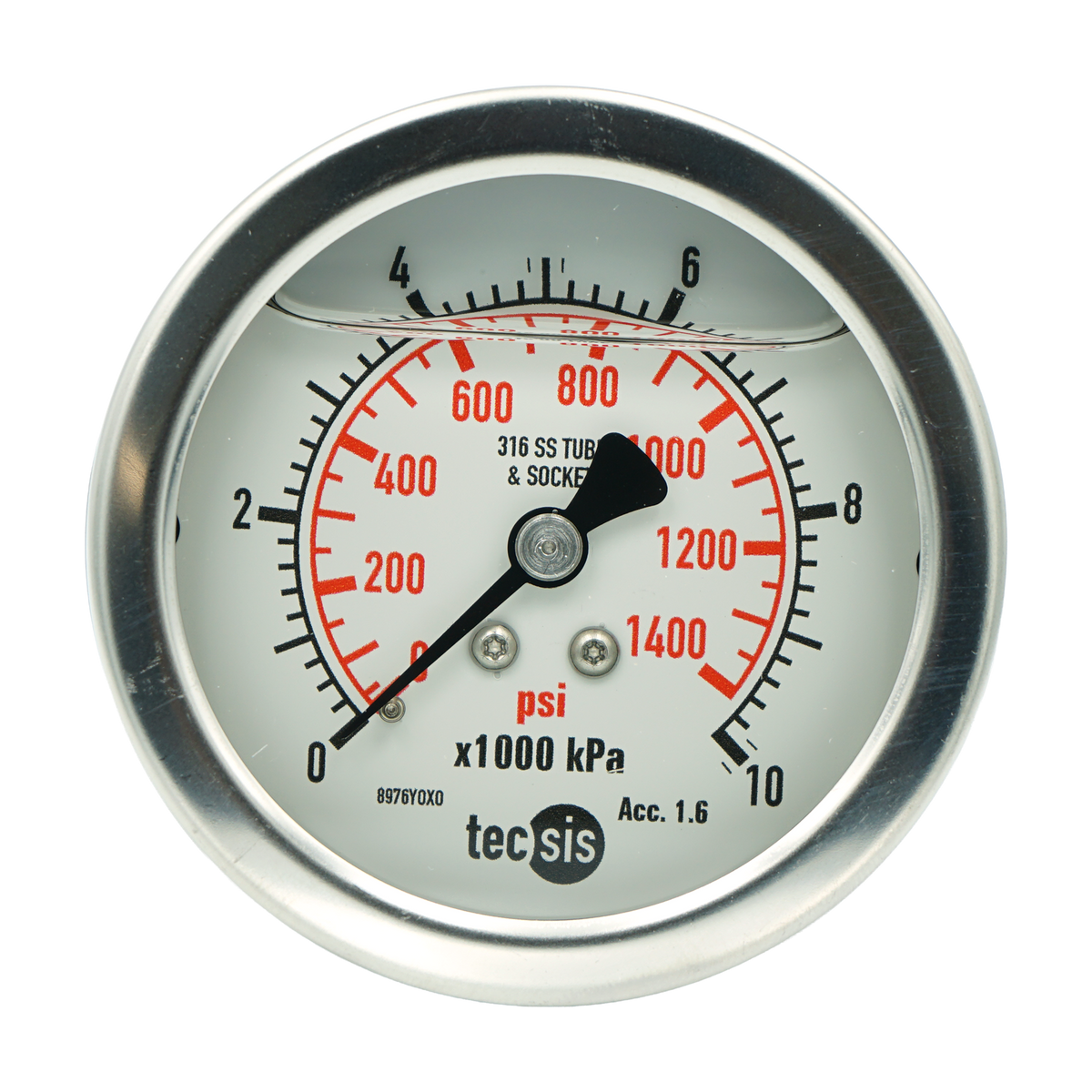

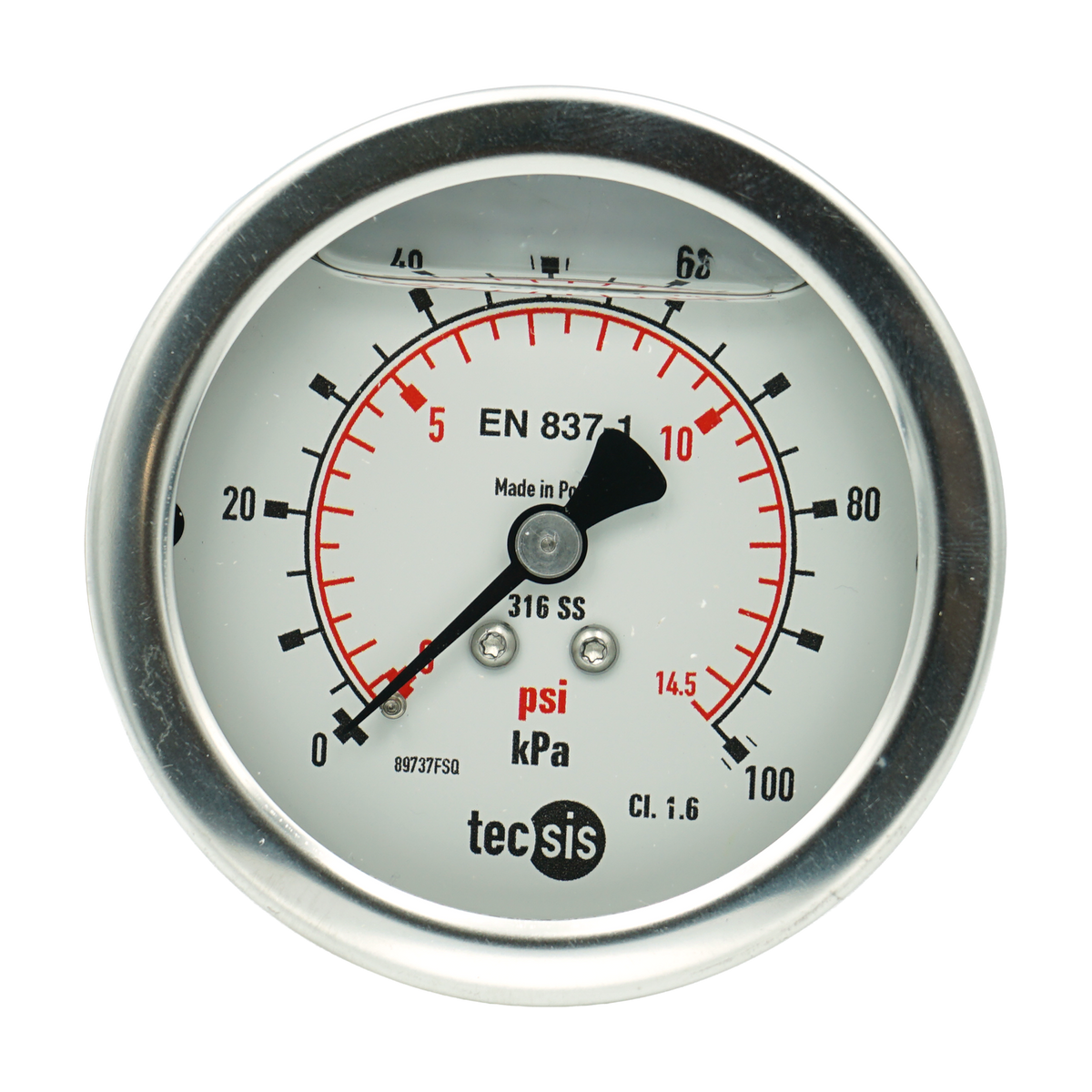

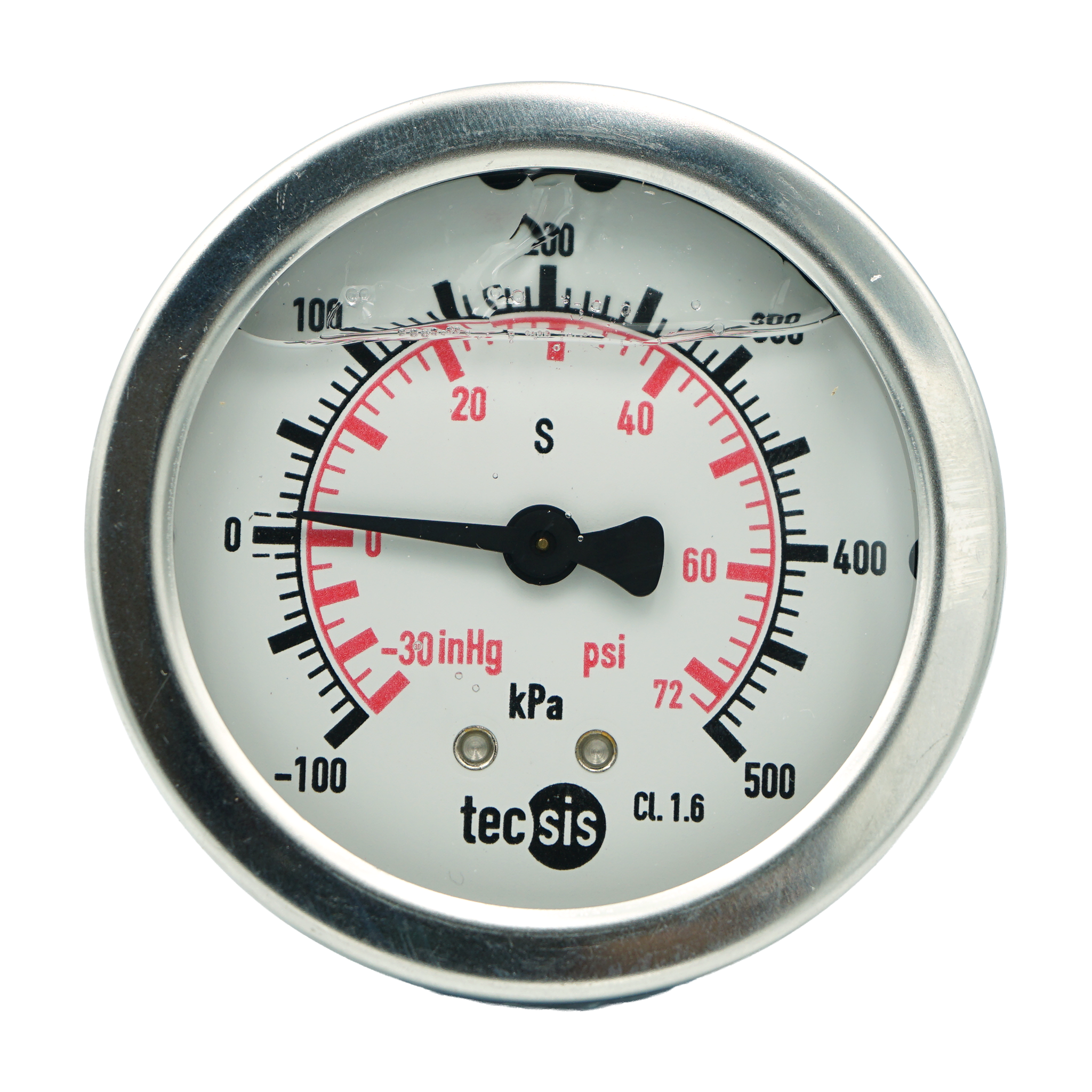

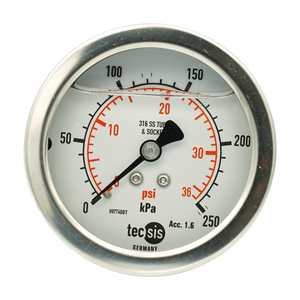

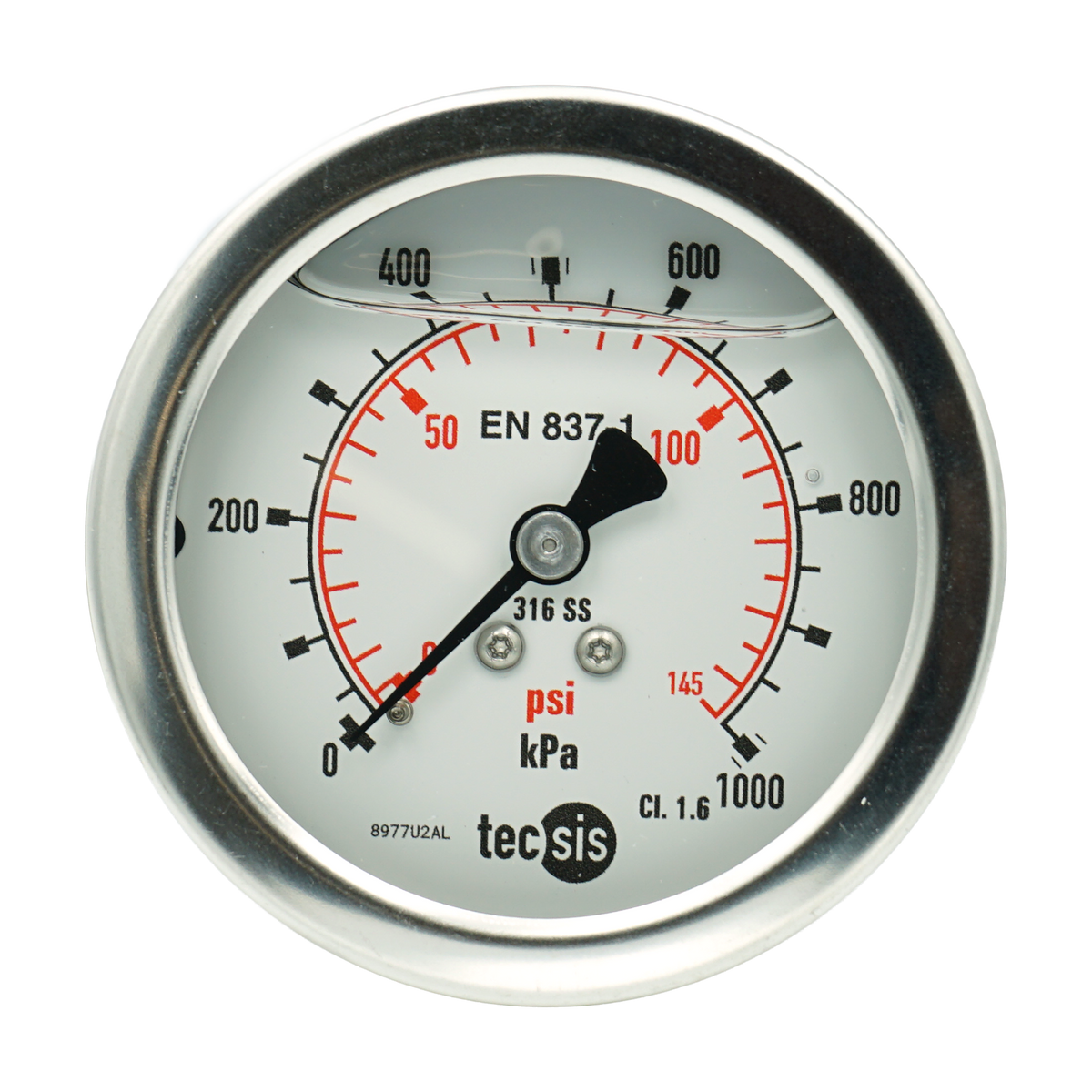

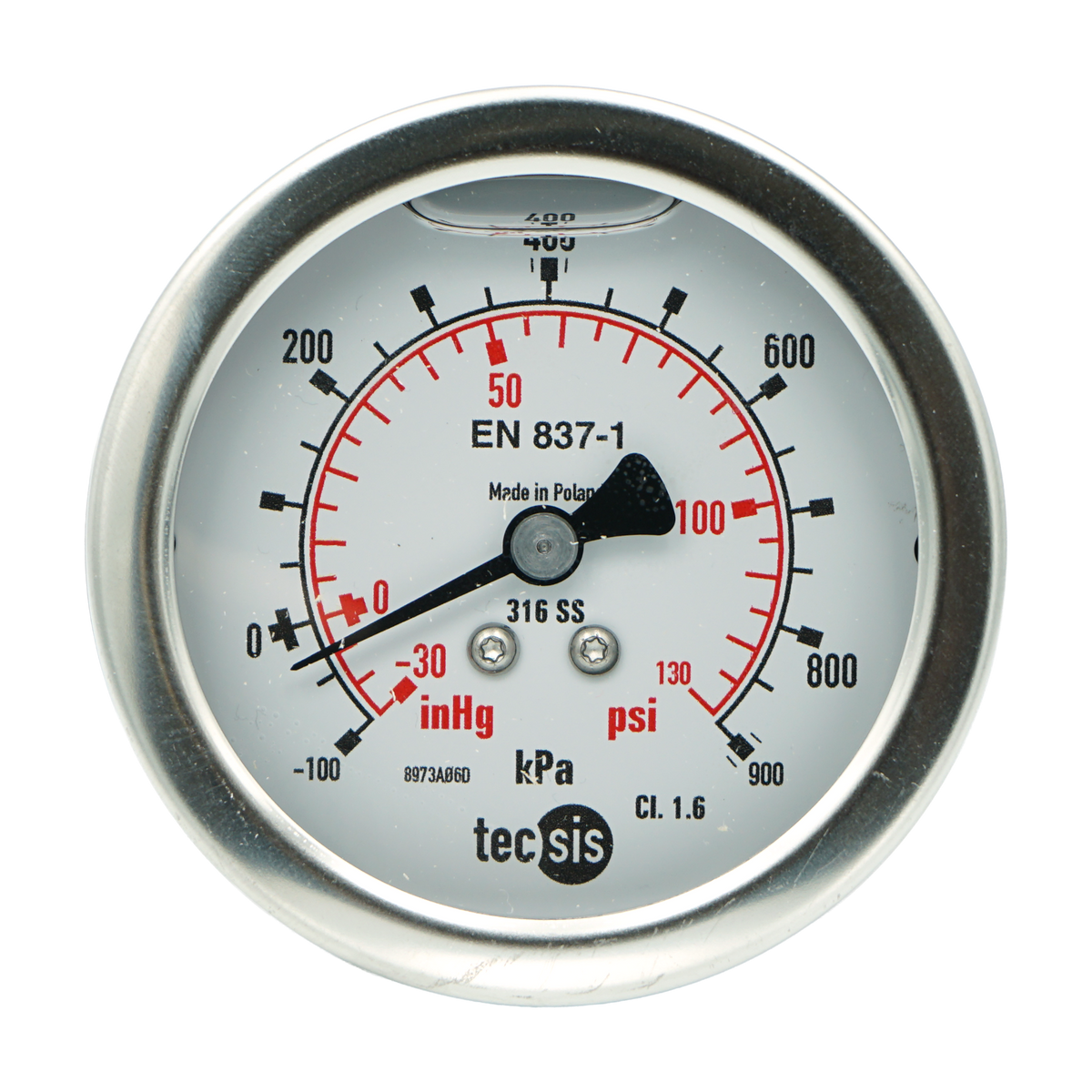

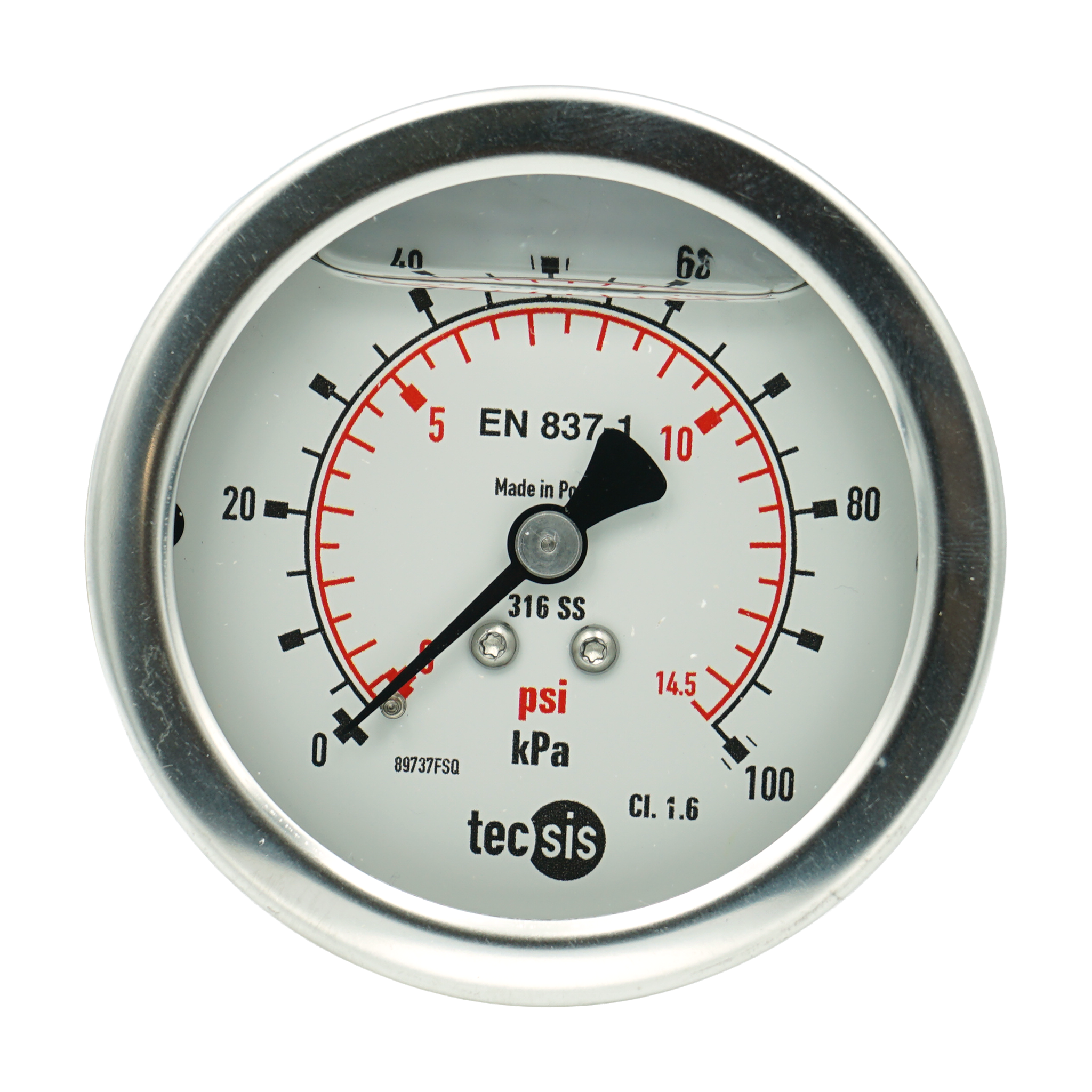

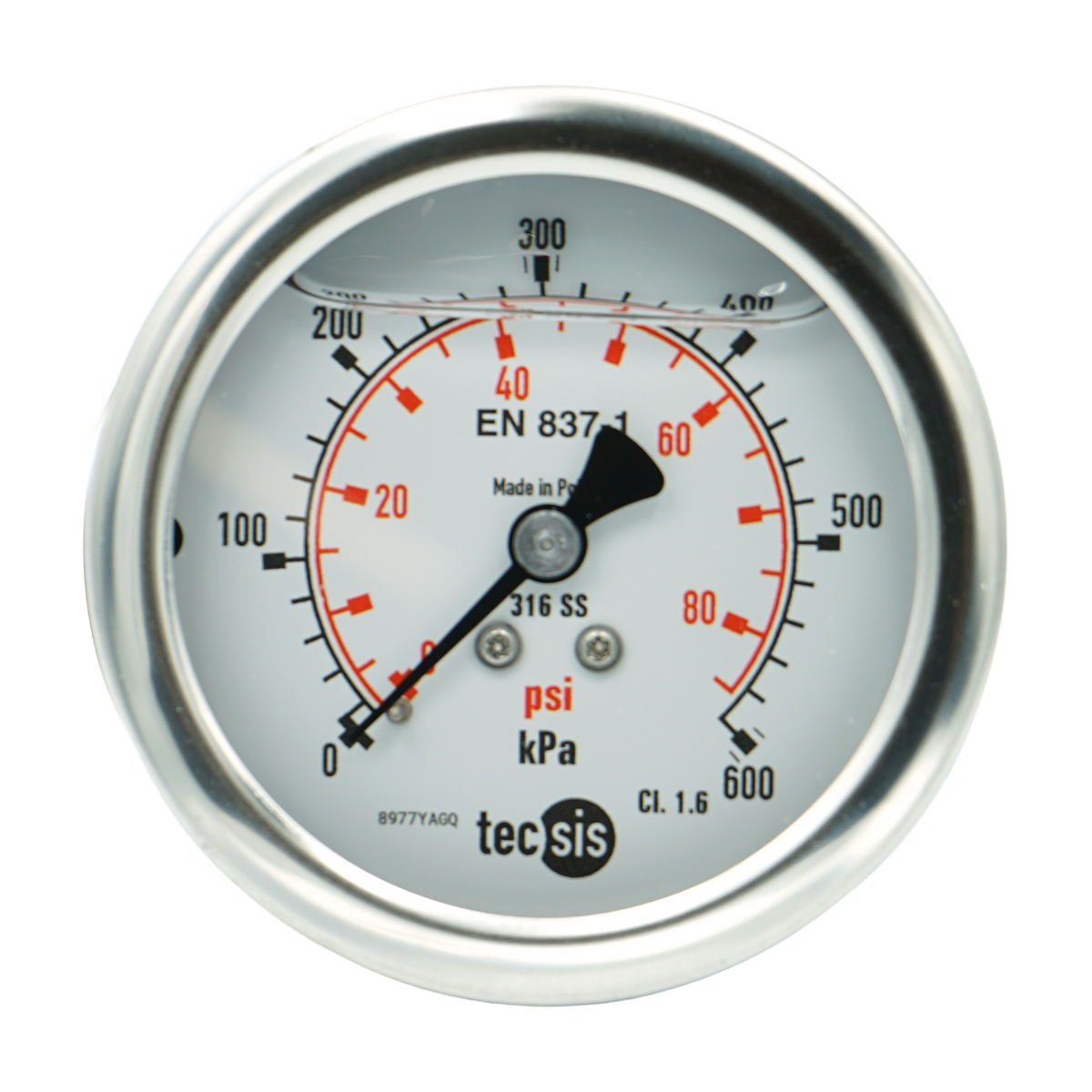

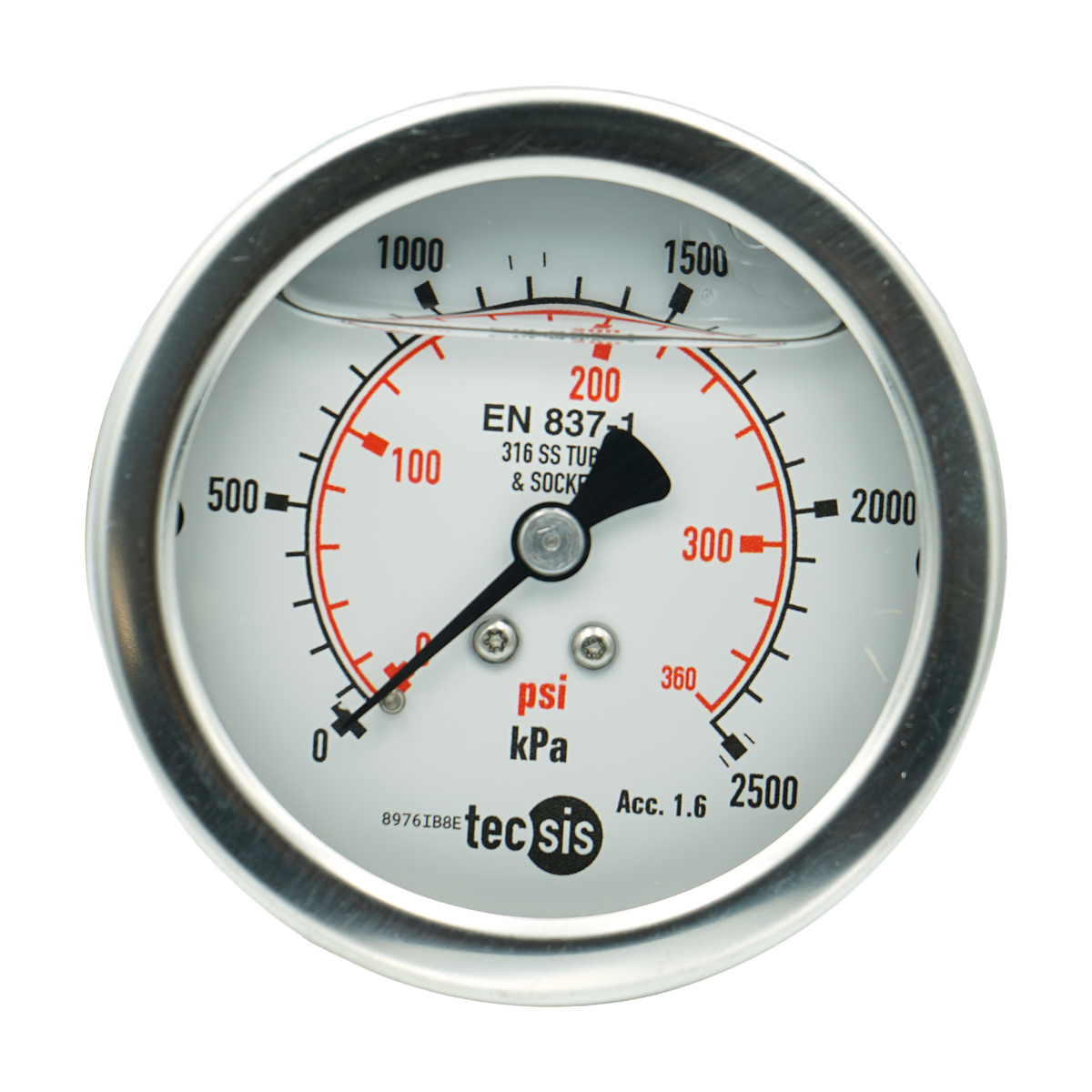

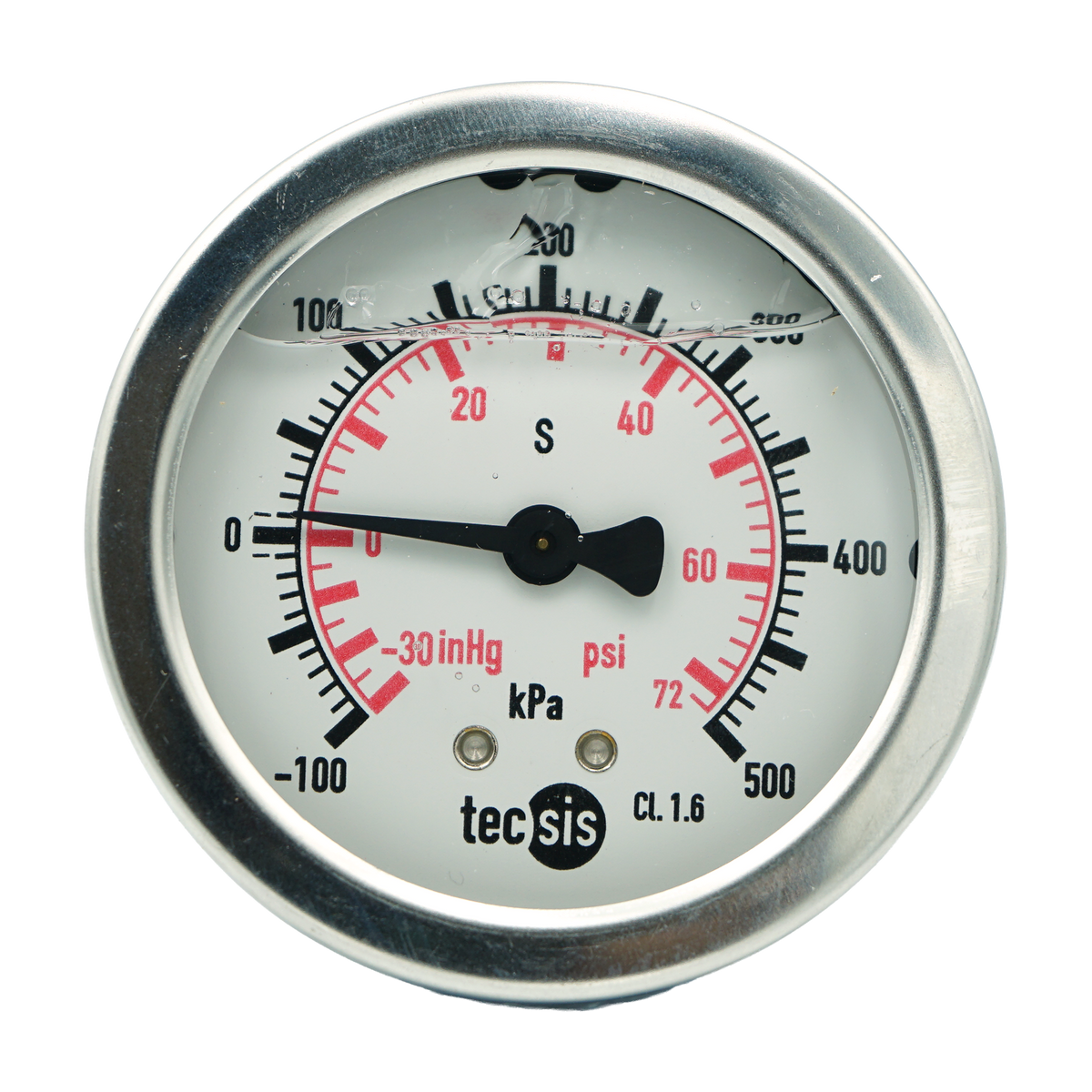

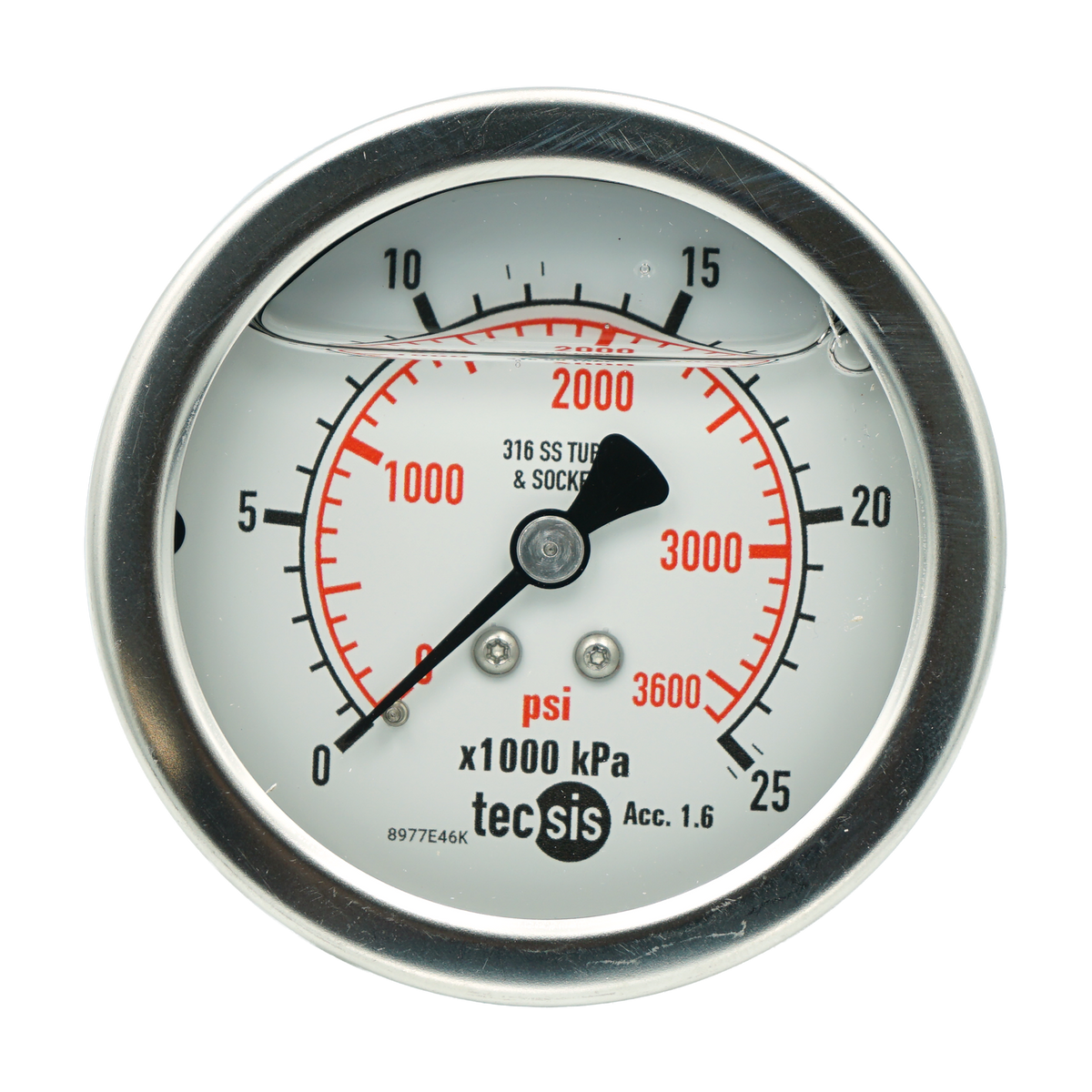

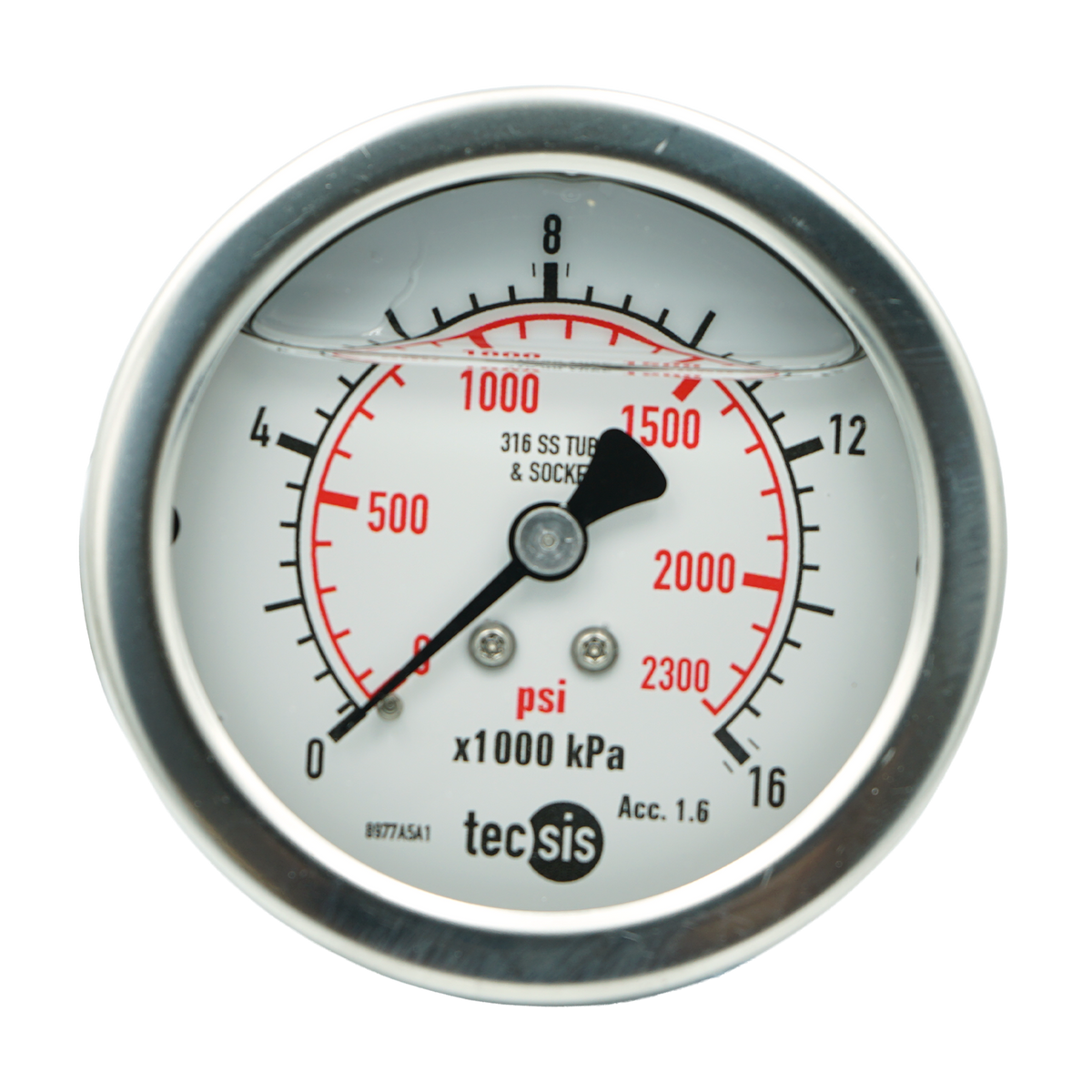

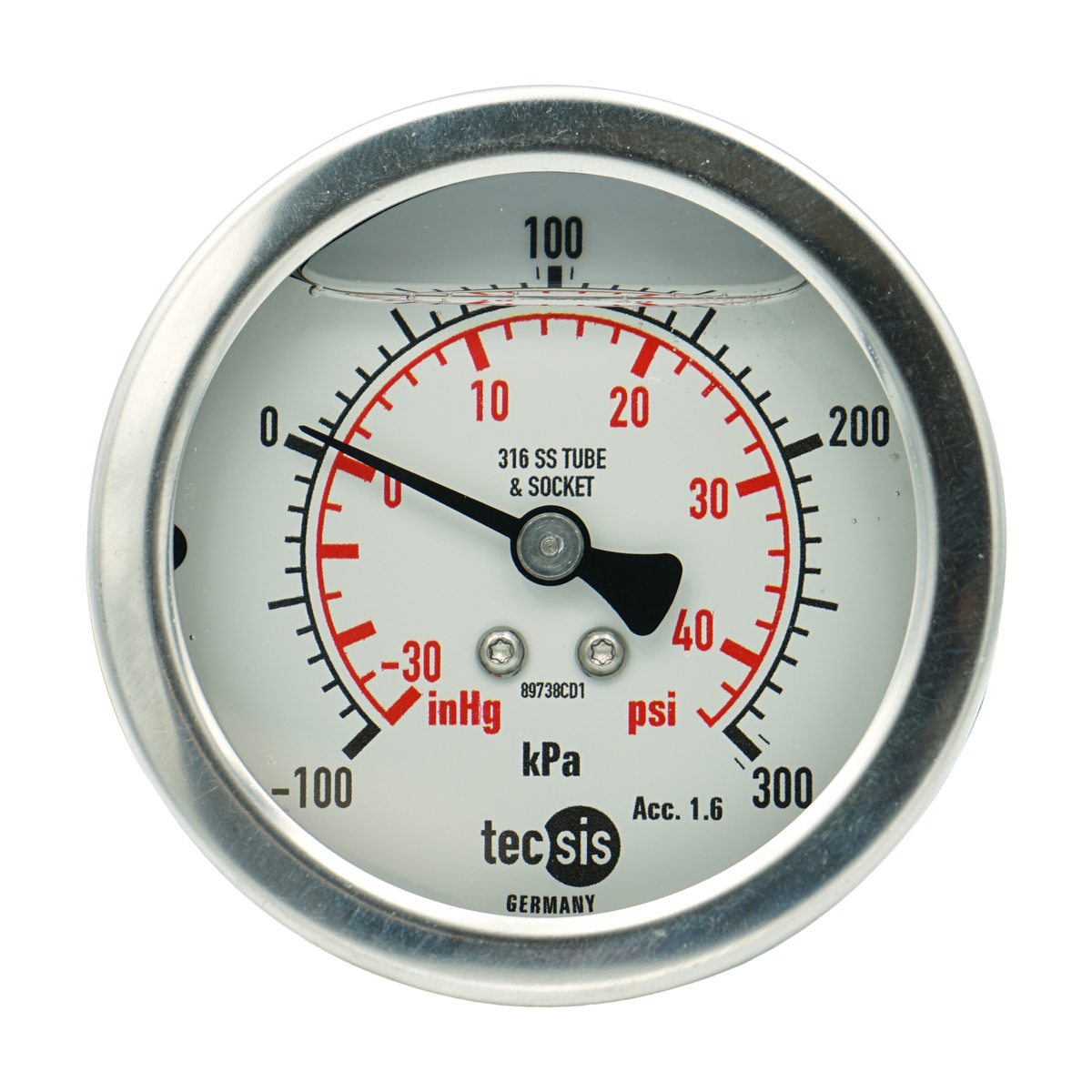

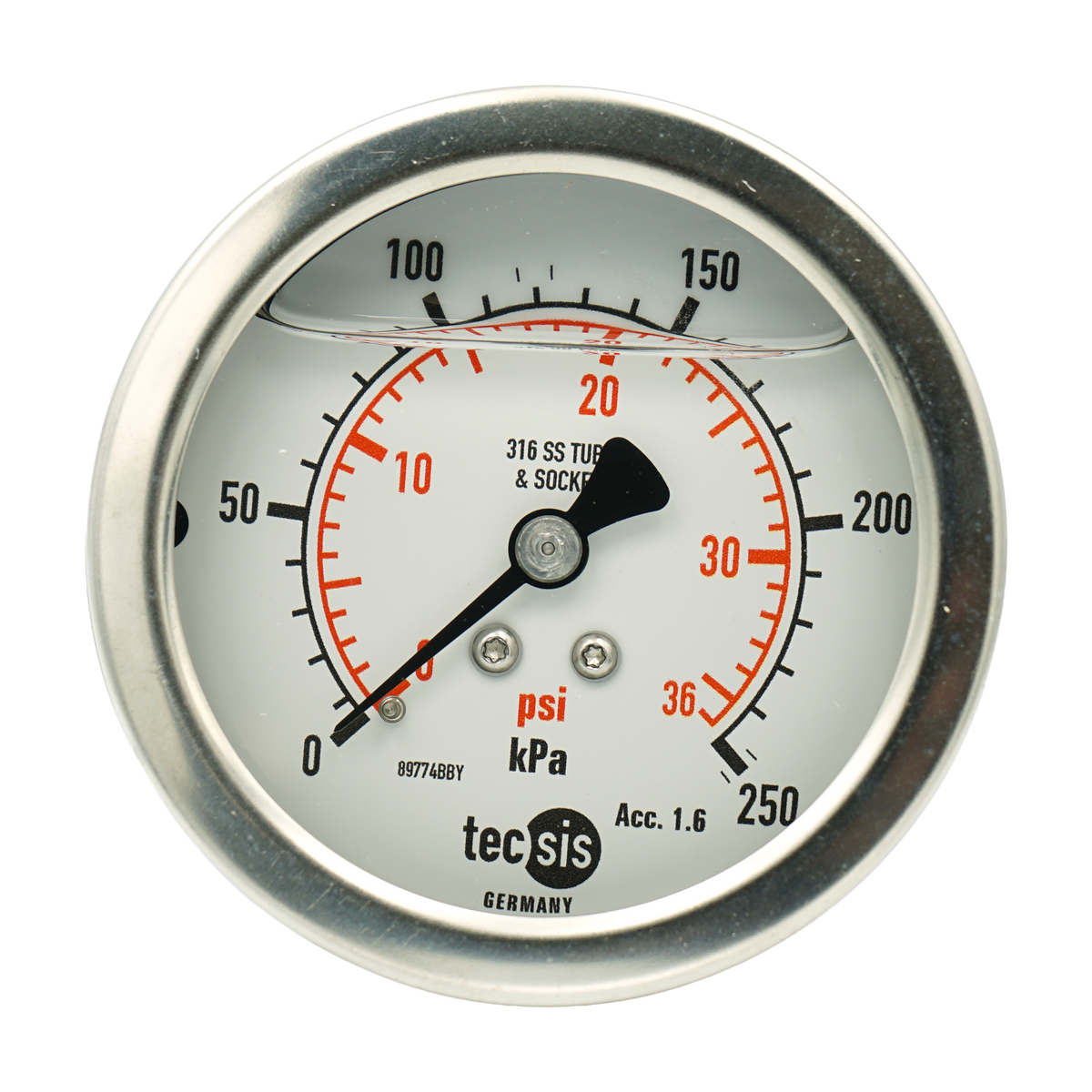

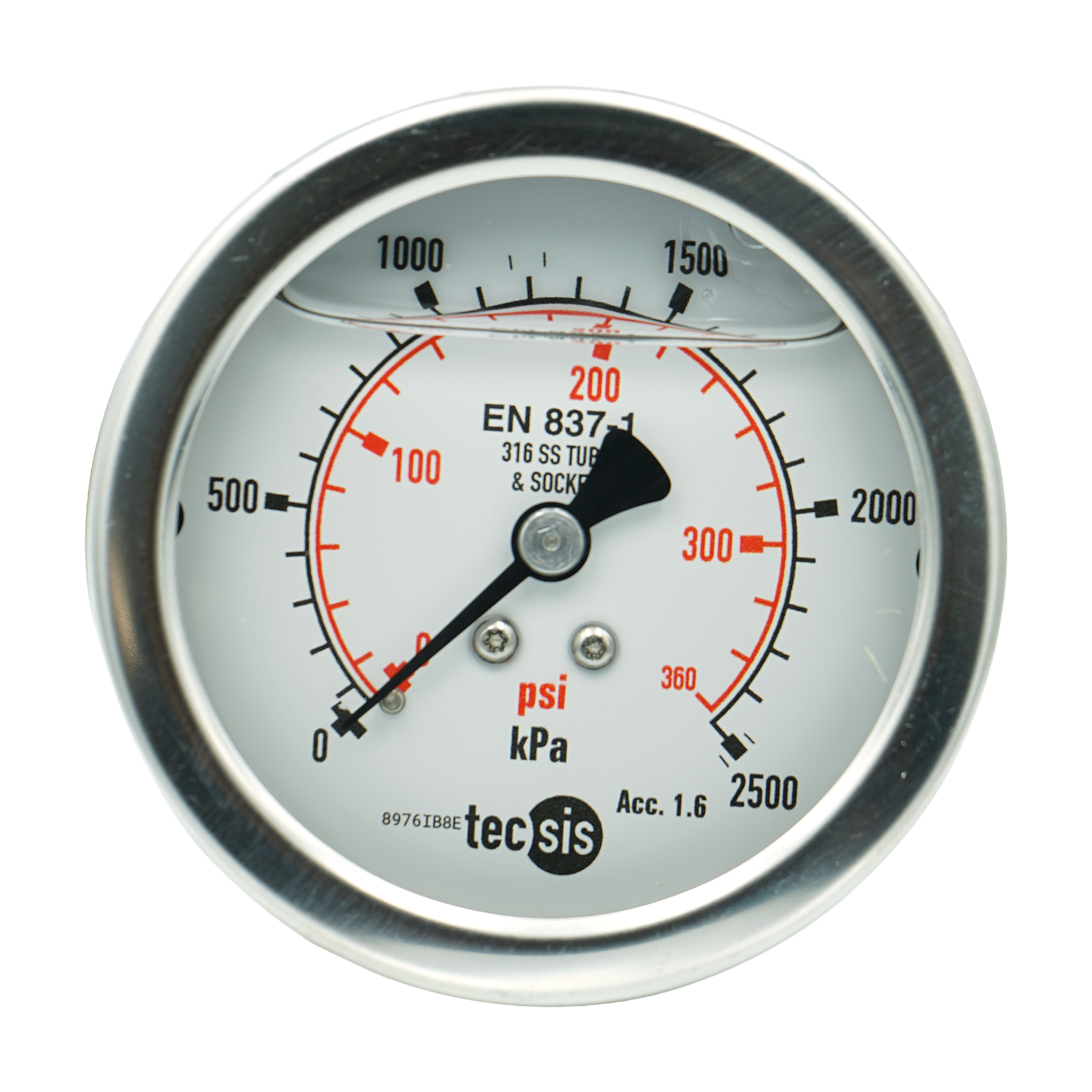

P2033 63mm Rear-Entry Pressure Gauge: All Stainless Steel, 1/4" BSPT

FREE SHIPPING ON ORDERS OVER $40!

Buy Pressure Gauge Adaptors, Shrouds and More Here!

Data Sheet P2032 & P2033

The glycerine filling provides wear-protection for the measuring-system through damping, should pulsating pressures and mechanical vibrations occur.

The measuring system is of accuracy class 1.6 has overload protection amounting to 1.3 times the max. rating and can be loaded up to the full scale value.

Specifications:

• Connection position bottom radical or back, central
• Case with glycerine filling
• All stainless measuring system and case
• Protection to IP 65
• For use up to 3/4 scale value
• Scale value over range protection
• 304 Stainless Steel casing
• 316 Stainless Steel wetted parts
